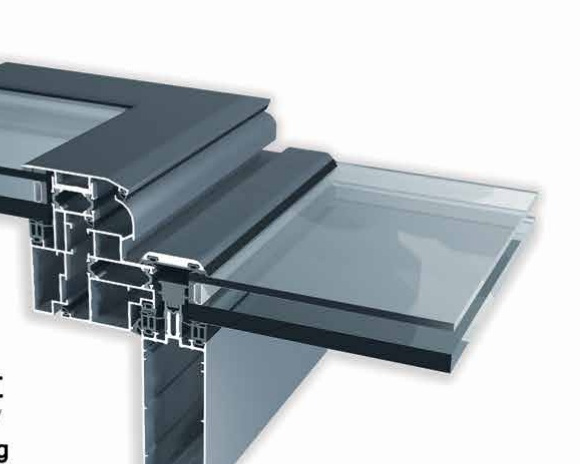

02/03 Curtain Walls & Skylight Applications
Stick curtain wall system
GF50 is the slimmer member of the stick curtain wall family, with thermal-break engineering, optimized glazing options and the same transom drainage approach.
- System type
- Thermal break
- Drainage
- Profile properties
GF50 profileSheet 13
(01)Features
What it does well.
01
Slimmer sightlines
A narrower mullion/transom family for finer façade grids.
02
Thermal-break engineering
Thermal separation within the profiles.
03
Transom drainage
A drainage approach routed through the transoms.
Documented options
- Mullion / transom profiles
- Optimized glazing options
(03)Technical details
By the catalogue.
Only values printed in the supplied 2026 catalogue (PDF sheet 13). Thermal values are pending confirmation and are not shown.
| System type | Stick curtain wall |
|---|---|
| Thermal break | Yes |
| Drainage | Transom drainage approach |

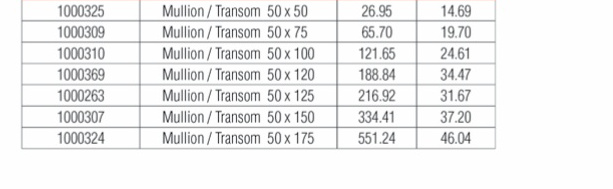

| Profile properties | See reference table imageValues not transcribed; refer to source table |

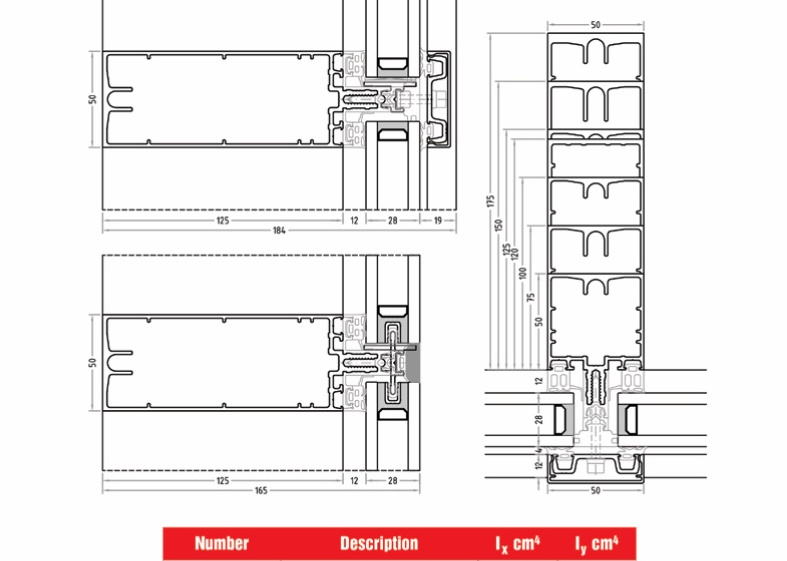

Sections & configurations · 2
100%Open original
100%Open original
(04)Gallery
GF50 in place.
4 images

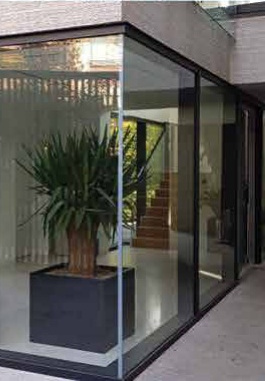

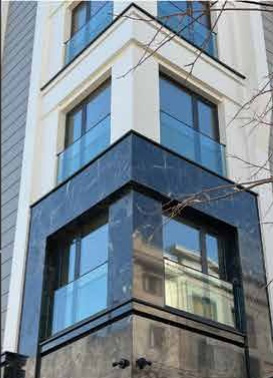

Architectural photographs are catalogue application imagery, not identified completed projects.
