01/03 Curtain Walls & Skylight Applications
Stick curtain wall system
GF60 is a stick-built aluminum curtain wall. The catalogue describes thermal-break engineering, optimized glazing options and a transom drainage approach, with mullion/transom sections and profile-property tables.
- System type
- Thermal break
- Drainage
- Profile properties
GF60 profileSheet 13
(01)Features
What it does well.
01
Stick-built façade
Mullions and transoms assembled on site to form a continuous glazed façade.
02
Thermal-break engineering
Thermal separation in the system helps manage heat flow across the façade.
03
Transom drainage
Water is directed through the transoms as part of the drainage approach.
Documented options
- Mullion / transom profiles
- Optimized glazing options
- Skylight application (see GF60HV spread)
(03)Technical details
By the catalogue.
Only values printed in the supplied 2026 catalogue (PDF sheet 13). Thermal values are pending confirmation and are not shown.
| System type | Stick curtain wall |
|---|---|
| Thermal break | Yes |
| Drainage | Transom drainage approach |

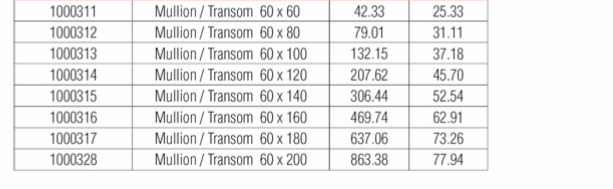

| Profile properties | See reference table imageValues not transcribed; refer to source table |

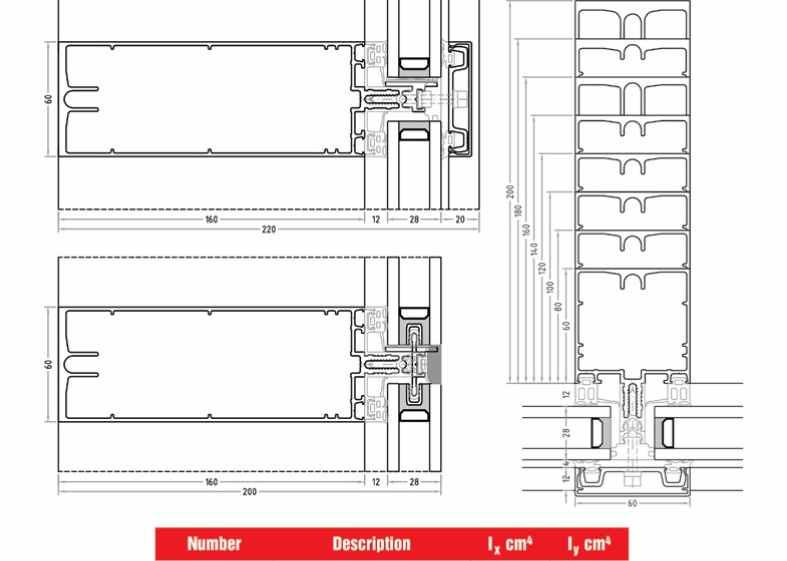

Sections & configurations · 2
(04)Gallery
GF60 in place.
5 images
Architectural photographs are catalogue application imagery, not identified completed projects.
