02/03 Lift & Slide

Integrated drainage system

GS142 DS focuses on how water leaves the threshold: integrated drainage, thin profiles, large sash formats and advanced corner connection technology, across multiple opening configurations.

Ask about this system

Drainage
Profiles
Catalogue notation
Sash weights

GS142 DS profileSheet 9

(01)Features

What it does well.

Integrated drainage

Drainage is integrated into the system to manage water at the sill.

Thin profiles, large sashes

Slender sightlines with large sash formats for generous glass.

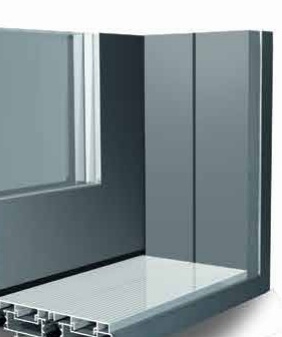

Corner connection technology

Advanced corner connections, as illustrated in the catalogue.

Multiple configurations

A range of track and panel arrangements is shown in the opening diagrams.

Documented options

Lift and slide
Multiple track configurations
Fixed-panel combinations

Interactive model

How lift-and-slide moves.

Watch it run, or take over with the keyboard and pointer.

Moving sash — lifts, then slidesFixed panelSeals and track on the sillGS142 is catalogued for moving sashes up to 500 kg and fixed sashes up to 1000 kg. Operation illustration: the lift is exaggerated so it can be seen; not an engineering simulation.

The lift-and-slide principle, shown on a generic model; GS142 DS configurations and values are those listed for GS142 DS only.

(03)Technical details

By the catalogue.

Only values printed in the supplied 2026 catalogue (PDF sheet 9). Thermal values are pending confirmation and are not shown.

GS142 DS specifications
Drainage	Integrated
Profiles	Thin profiles, large sash formats
Catalogue notation	NAFS 2017 PG40Printed on the GS142 DS spread; applies to this catalogue entry only
Sash weights	Not specified in supplied catalogueGS142 values are not assumed for this variant

Sections & configurations · 3
